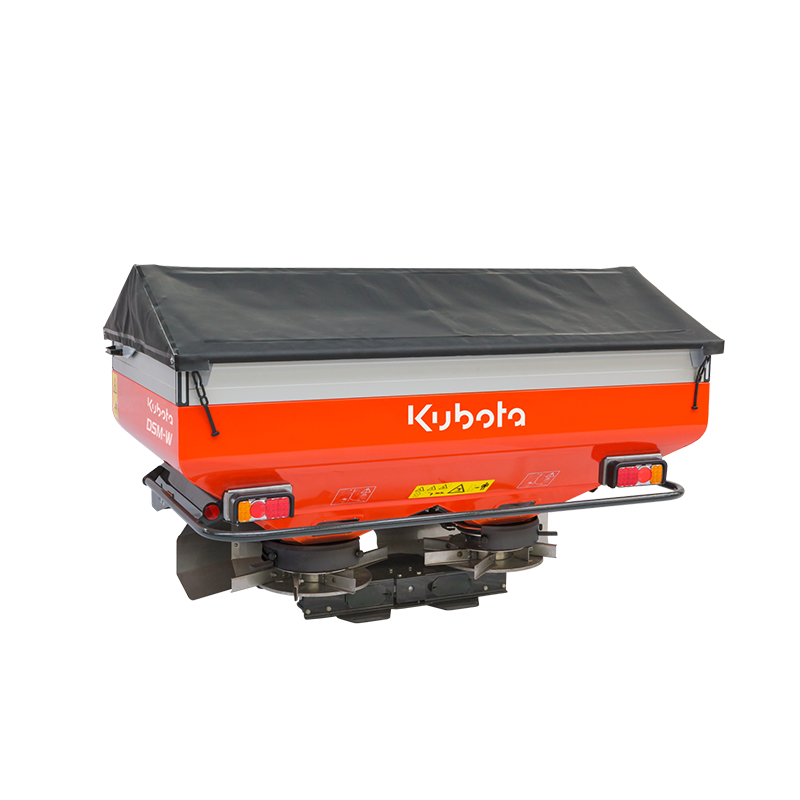

DSM-W 1100-1550-2000

The W for Weighing!

Make spreading easy with the DSM-W!

The DSM-W is the ideal weighing spreader for the smaller grower! This ISOBUS 11783 compatible weighing spreader is equipped with an unique reference sensor. The FlowPilot dashboard on each spreading disc ensures simple and quick setting or adjustment. The basic hopper capacity is 1.100 litres, but this volume can be increased with maximal 2 easy to assemble aluminium hopper extensions up to 2.000 litre hopper capacity. Working widths from 10 up to 24m are possible. An optional kit of vanes is available for 27/28m spreading. The DSM-W can be operated with the Kubota IsoMatch Tellus PRO or IsoMatch Tellus GO. Highest accuracy in all conditions: even spreading quality guaranteed. Save costs and increase quality!

The Advantages:

  • RotaFlow spreading system
  • Weighing system with unique reference sensor
  • FlowPilot for quick and easy adjustment
  • Easy border spreading systems available
  • ISOBUS 11783 compatible for easy plug and play
  • Possible in combination with IsoMatch GEOCONTROL

Find a dealer

Locate me
Technical specifications
DSM-W DSM-W1100 DSM-W1550 DSM-W2000
Hopper capacity (kg) 1100 1550 2000
Filling height (cm) 100 119 138
Width (cm) 220 220 220
Filling width (cm) 214 214 214
Empty weight (kg) 380 400 425
Spread width (m) 10-24 (27/28)* 10-24 (27/28)* 10-24 (27/28)*
Output (kg/min) 10-320 10-320 10-3200

*Depending on type of vanes and fertiliser
