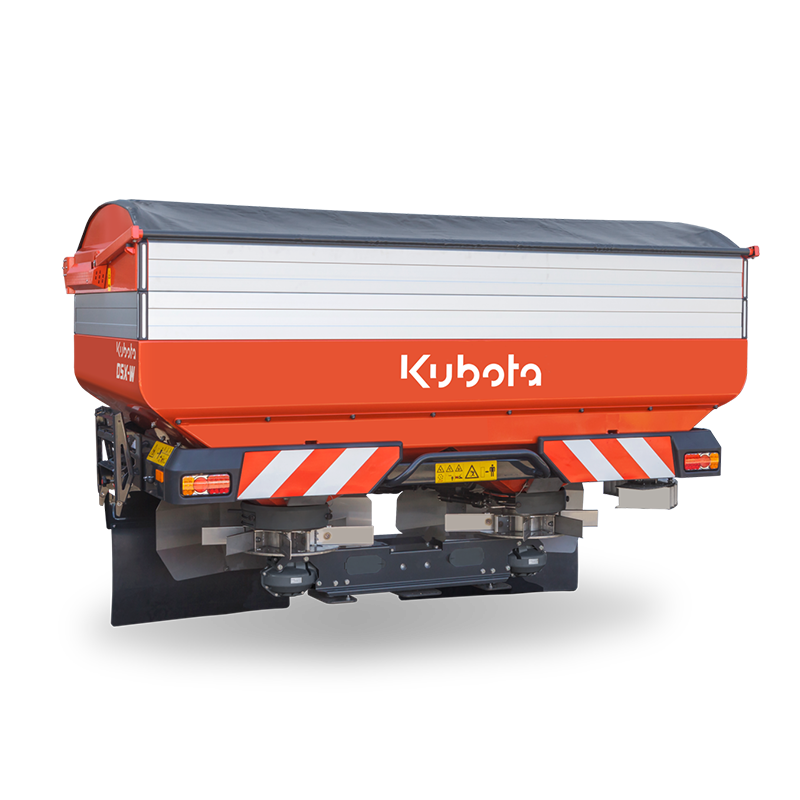

Spreaders DSX-W

Spreaders

High tech weighing with high capacity.

The W for Weighing!

The DSX-W is the top of the range model. This ISOBUS 11783 compatible weighing spreader is equipped with an unique reference sensor. The FlowPilot dashboard on each spreading disc ensures simple and quick setting or adjustment. Different hopper capacities are available: two different basic hoppers of 1.500 and 1.875 litres and they can be increased with maximal 3 hopper extensions up to 3.450 and 3.900 litre capacity! Working widths from 12 up to 54m are possible. The DSX-W can be operated with the Kubota IsoMatch Tellus or IsoMatch Tellus GO.

The Advantages:

RotaFlow spreading system
Fully automatic weighing system with unique reference sensor
FlowPilot for quick and easy adjustment
Easy border spreading systems are available
ISOBUS 11783 compatible for easy plug and play
Possible in combination with IsoMatch GEOCONTROL

Download technical document

KUBOTA Dealer

Find your Kubota provider

Quotation Request

Technical specifications

DSX-W (275 cm)	DSX-W1500	DSX-W2150	DSX-W2800
Hopper capacity (l)	1500	2150	2800
Filling height (cm)	110	129	148
Width (cm)	275	275	275
Filling width (cm)	269	269	269
Empty weight (kg)	665	695	725
Spread width (m)	12-45 (54)*	12-45 (54)*	12-45 (54)*
Output (kg/min)	10-320	10-320	10-320

DSX-W1875 (290 cm)	DSX-W1875	DSX-W2550
Hopper capacity (l)	1875	2550
Filling height (cm)	120	139
Width (cm)	290	290
Filling width (cm)	284	284
Empty weight (kg)	705	735
Spread width (m)	12-45 (54)*	12-45 (54)*
Output (kg/min)	10-320	10-320

*Depending on fertiliser type and type of vanes
