Spreaders DSM

Spreaders

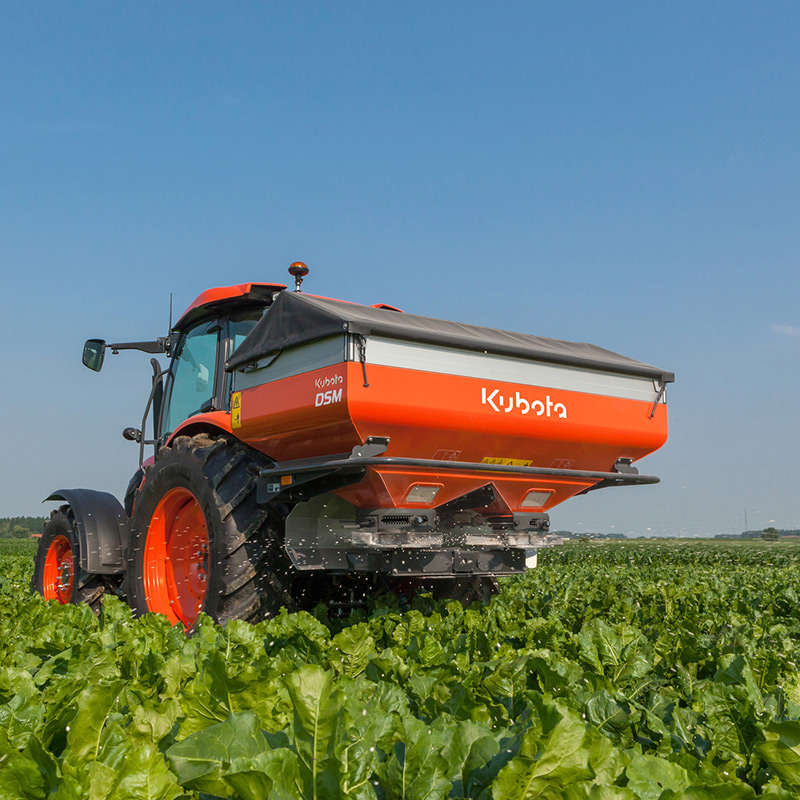

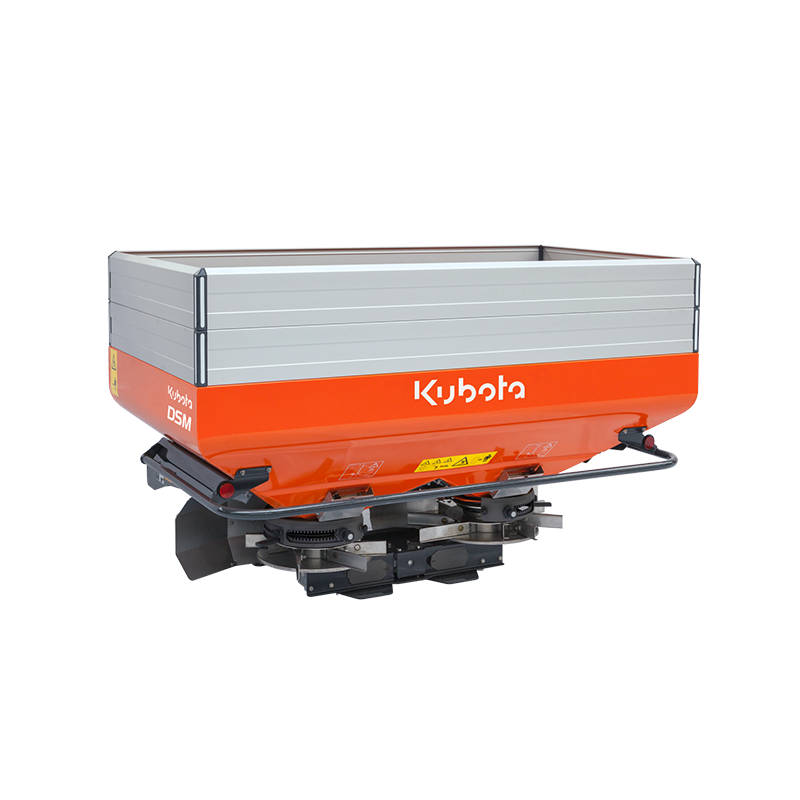

The DSM spreader is the master of the medium segment.

Ideal for the medium segment

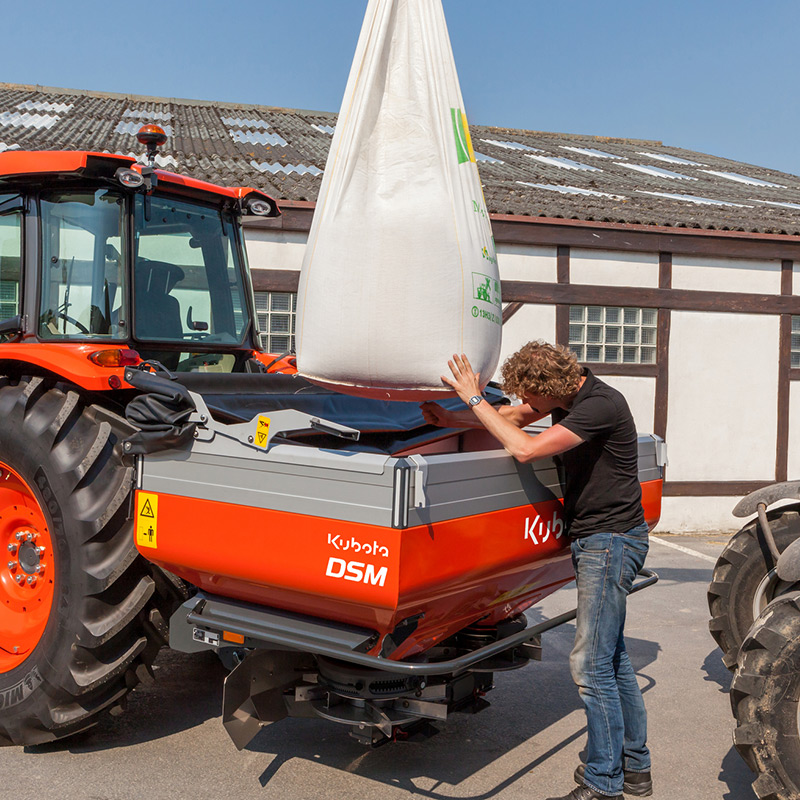

The DSM is the perfect spreader for the medium segment of farms! Each spreading disc has 8 vanes and their length determines the working width of the machine. These 8 vanes contribute to the highly accurate spread pattern across the complete working width reaching from 10 up to 28 metres. With the easy to assemble aluminium extension rims the basic hopper capacity of 1.100 litres can be increased up to 1.550 or 2.000 litres.

The Advantages:

RotaFlow spreading system
FlowPilot for quick and easy adjustment
Easy border spreading systems
Standard and optional equipment available to fulfil your requirements
Comfort Control II to operate the spreader from the closed tractor cab

Download technical document

KUBOTA Dealer

Find your Kubota provider

Find a dealer

Technical specifications

DSM	DSM1100	DSM1550	DSM2000
Hopper capacity (kg)	1100	1550	2000
Filling height (cm)	100	119	138
Width (cm)	220	220	220
Filling width (cm)	214	214	214
Empty weight (kg)	325	350	375
Spread width (m)	10-24 (27/28)*	10-24 (27/28)*	10-24 (27/28)*
Output (kg/min)	10 – 320	10 – 320	10 -320

*Depending on type of vanes and fertiliser
