The professional solution for large green areas

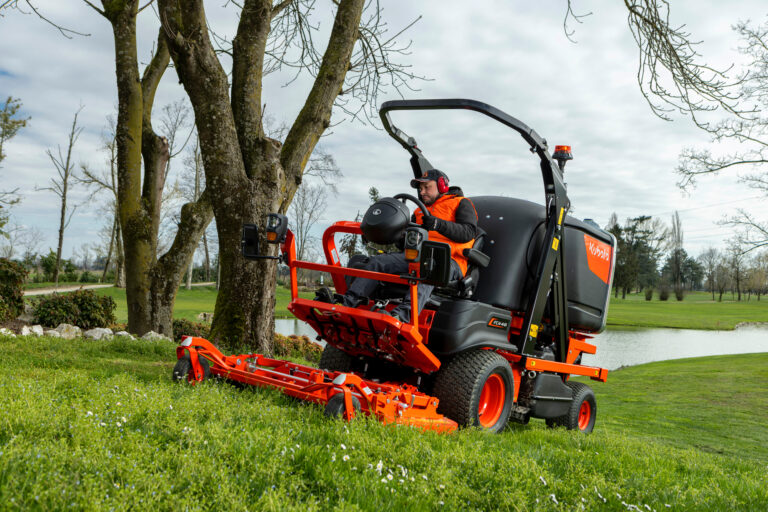

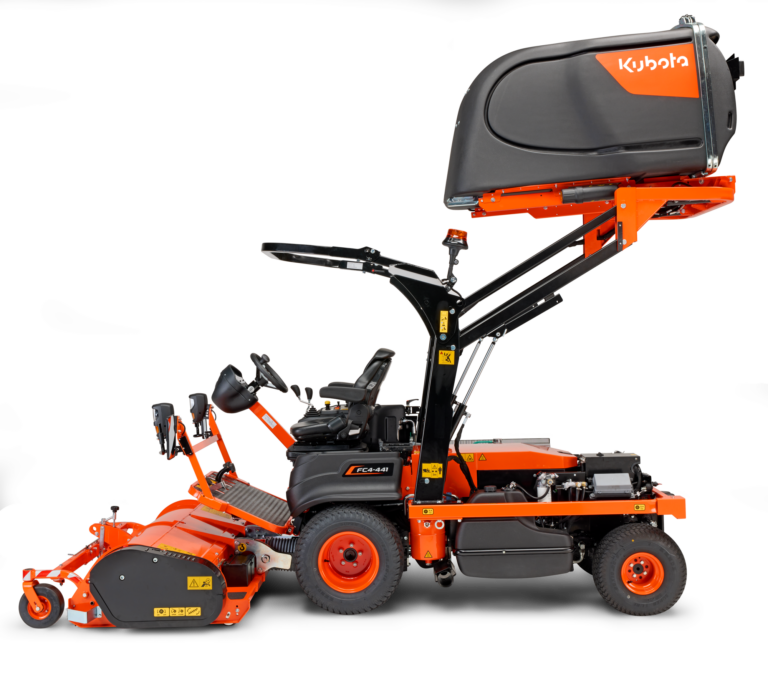

The Kubota FC4-441 is reliable, versatile machine built to handle large areas like parks, municipal spaces, sports facilities and similar with efficient cutting and great performance.
Engineered for perfomance
The Kubota 4 cylinder turbocharged diesel engine with Stage V emission standards represent the perfect balance between power and efficiency, ensuring that all the tasks are carried out with ease and reliability.
Control at its best

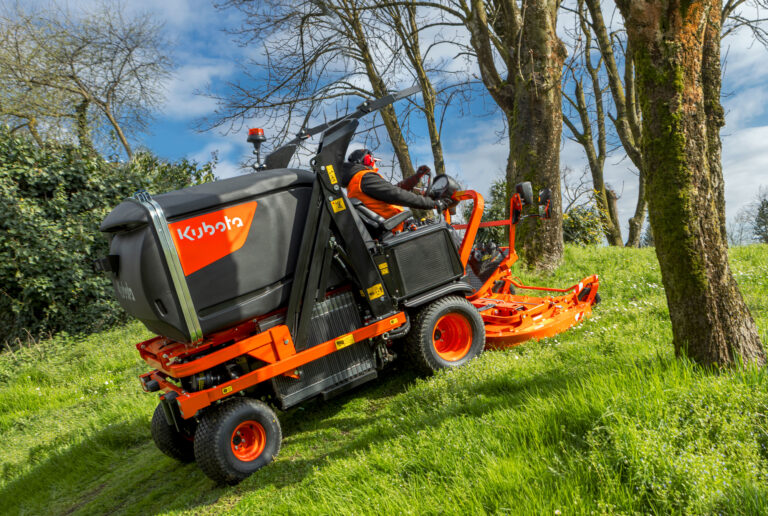

Dual-speed ranges and full-time 4WD enable operators to maintain steady speed and optimal traction regardless of the terrain or workload., reducing fatigue and increasing productivity.
Mow smart

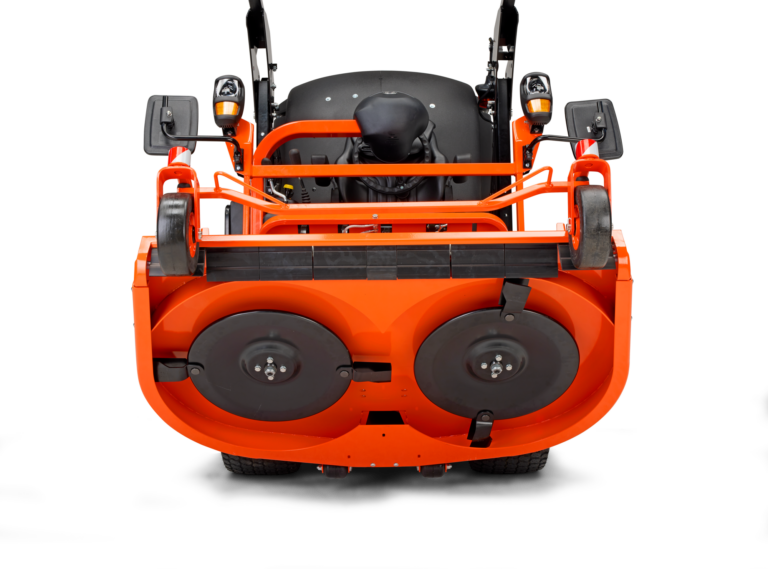

Swing back twin blade technology with opposite rotation, ensures fine cutting across large areas and easy maintenance.
Efficiency first

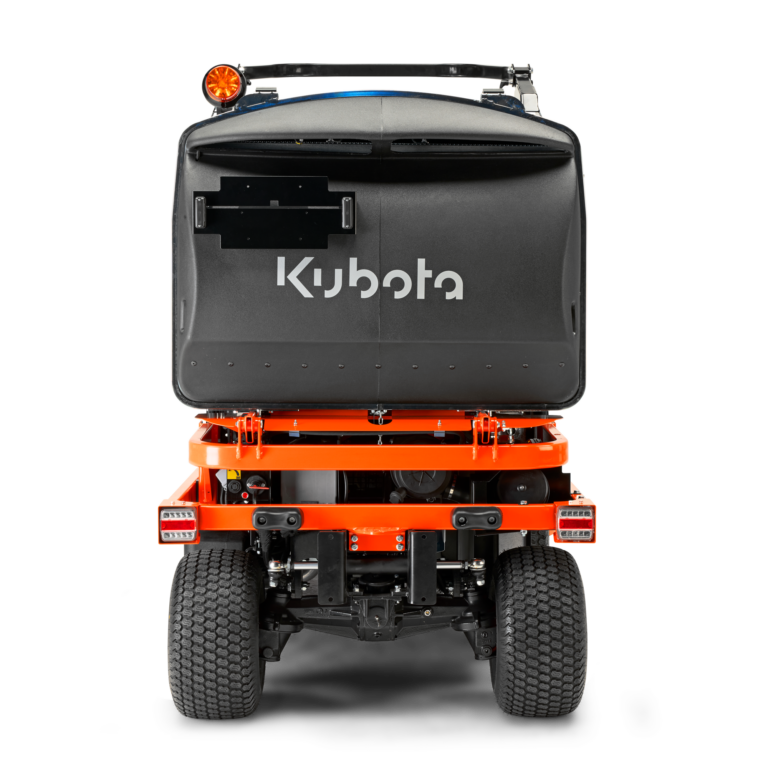

A large 1300 litres capacity collector with a emptying height of 229cm, motor-driven deflector and load spreader, which distributes clippings throughout the tank, reduces downtime and increasing productivity
Comfort as standard

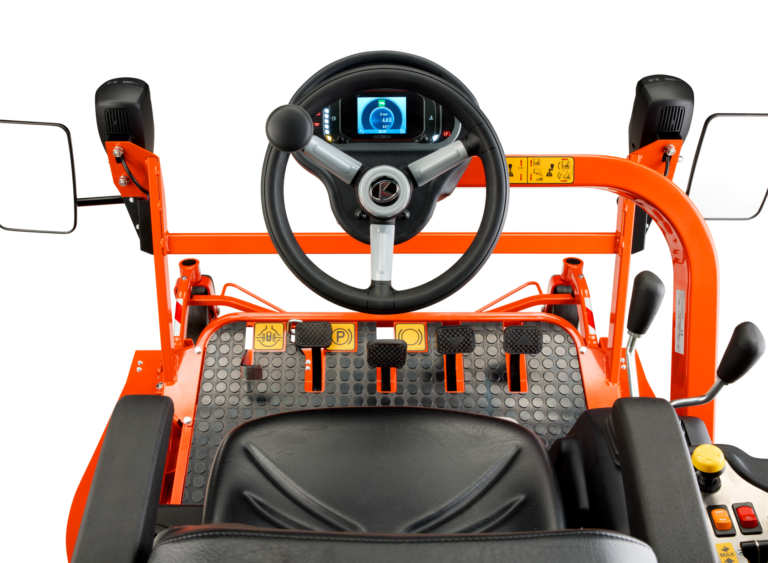

Suspension seat with armrest and an expansive tilting platform improves visibility and reduces fatigue over extended period. LED lights and ergonomic levers make your work easier even during low light operations.
Stick to your needs

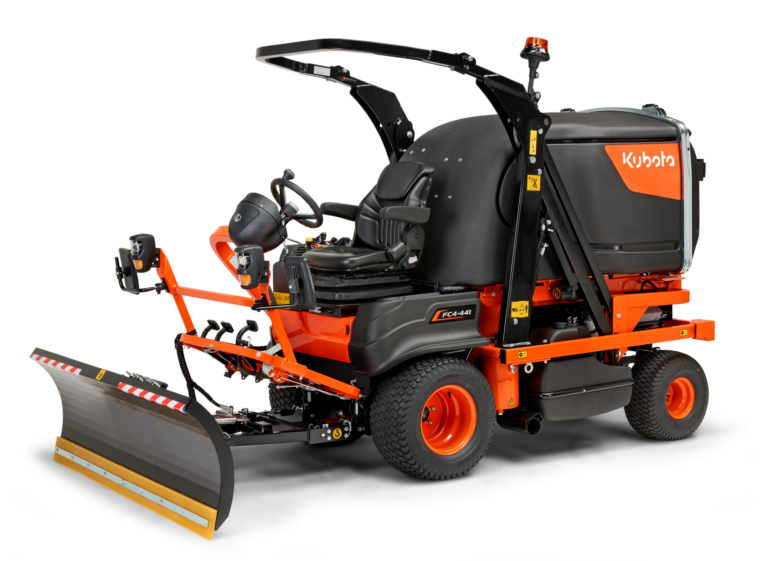

Different solutions like snow blade attachment make the FC4-441 fully customisable to adapt to any challenges.

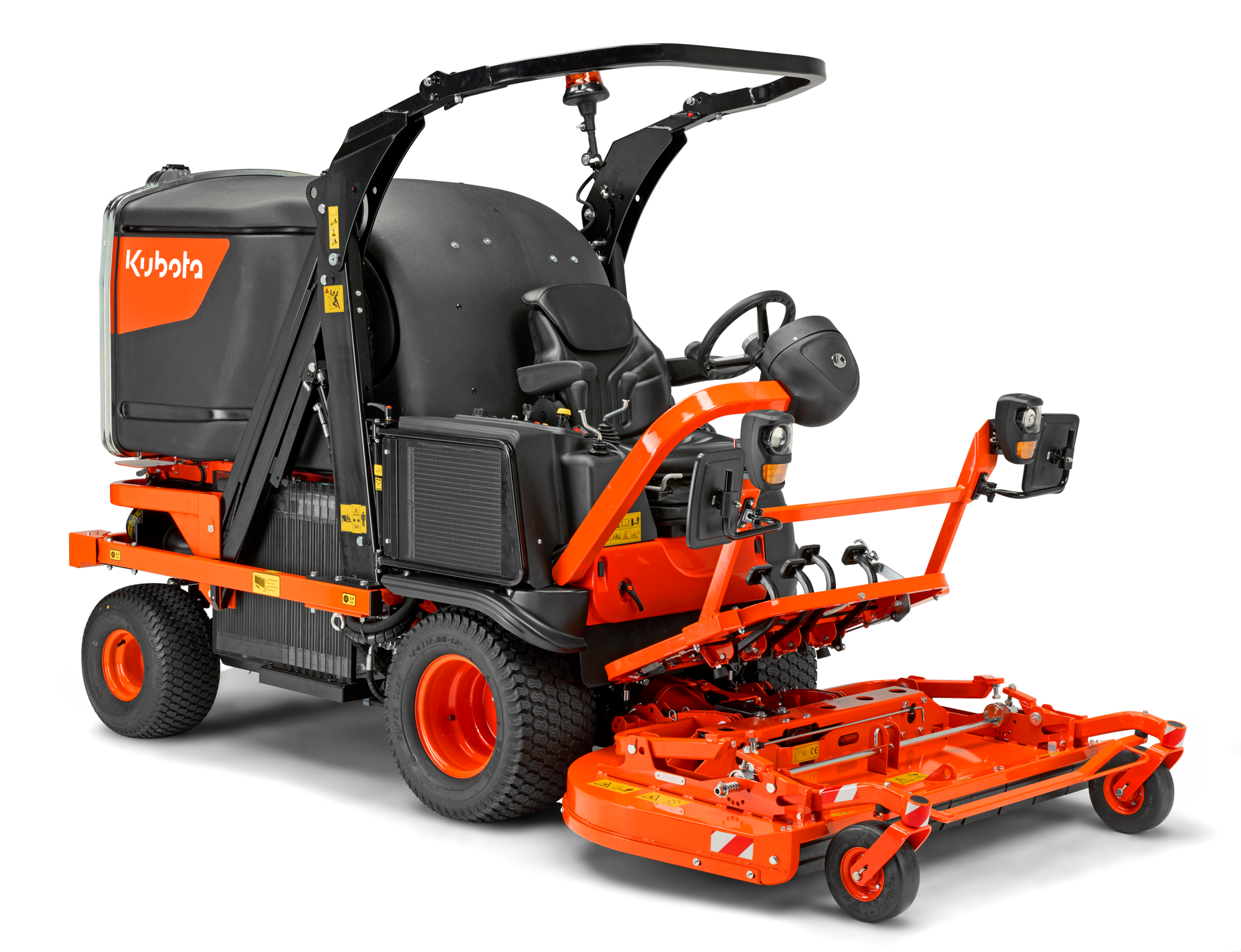

FC4-441
Model features
Model
Engine
Max. Power
Transmission
Mower Deck
Collecting system
Collector capacity
ModèleFC4-441
MoteurV1505 CR TE5B
Puissance Max. 44 HP
Transmission4WD HST
Plateau de tondeuse 59" rotary - 61" flail
Système de collecte Center collect with suction turbine
Capacité du collecteur 1300 L
- Working Comfort
- Engine
- Transmission
- Mower decks
- Grass collector
Working Comfort
- The platform is suspended on silent block rubber mounts that dramatically reduce any vibrations.
- The comfortable air-suspension deluxe seat guarantees ultimate driving comfort.
- Tilting large work lights provide a great view of the work area even in the dark.
Engine
- 4-cylinder water-cooled Kubota diesel engine
- EU Stage V emission
- The DOC (Diesel Oxidation Catalyst) reduces nitrogen oxide emissions and ensures continuous minimum regeneration in the DPF (Diesel Particulate Filter).
- Two electric reversing cooling fans for the engine cooling radiator and the oil cooler react immediately to temperature differences and prevent overheating.
Transmission
- The permanent 4-wheel drive and differential lock provide the best traction in all conditions while protecting the turf.
- Forward and reverse speed on the FC4-441 is controlled by two pedals.
- Two speed ranges are available for different applications – for mowing and for road travel.
- The parking brake is easily locked and unlocked with a switch and ensures safe parking even on steep terrain.
Mower decks
- An ergonomic lever raises and lowers the mower deck.
- The front mower deck with a width of 1.50 m (59'') offers high productivity with high cutting quality even in wet conditions.
- The "swing back" system with "swing back" twin blades absorbs shocks and protects the mower driveline from being hit by foreign objects in the grass.
- The mower deck can be hinged and fixed in a vertical position for sharpening or replacing the blades.
- There are several blade options for the 61'' (1.55 m) wide flail mower.
Grass collector
- The unique suction turbine ensures a smooth filling of the large grass collector.
- Lift, lower, tilt, retract – the grass collection is conveniently operated from the operator's seat using the single-lever joystick.

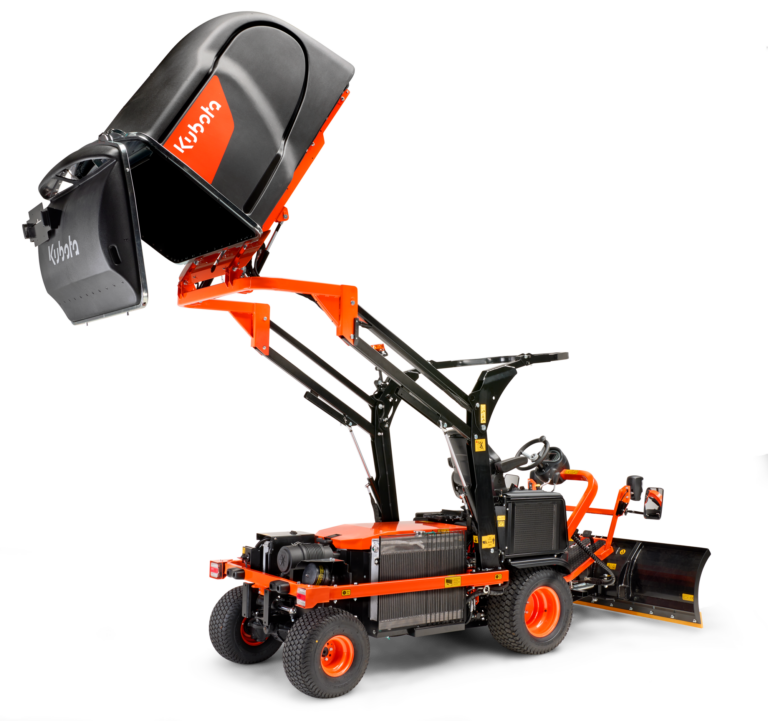

- The maximum unloading height of the grass collector with a whopping 1,300-liter capacity is 2.30 meters.
- Various functions of the grass collector ensure that the hopper volume can be fully utilized.
- A hydraulically controlled parallelogram system and a large tipping clearance allow effective and safe unloading.
