UNLEASH THE POWER OF PRECISION WITH THE F SERIES RANGE
If you are looking for a front mower that performs its mowing tasks quickly and efficiently, the Kubota’s F-Series is the perfect choice. This machine offers enhanced performance as well as high-quality mowing and mulching. This results in an excellent power-to-cost ratio.
The top performer
Powered by KUBOTA D1105 or V1505 engines ensure that you get more out of every tank, reducing fuel consumption and downtime. Reliability and durability are synonymous with Kubota engines.
Enhanced Visibility and Manoeuvrability

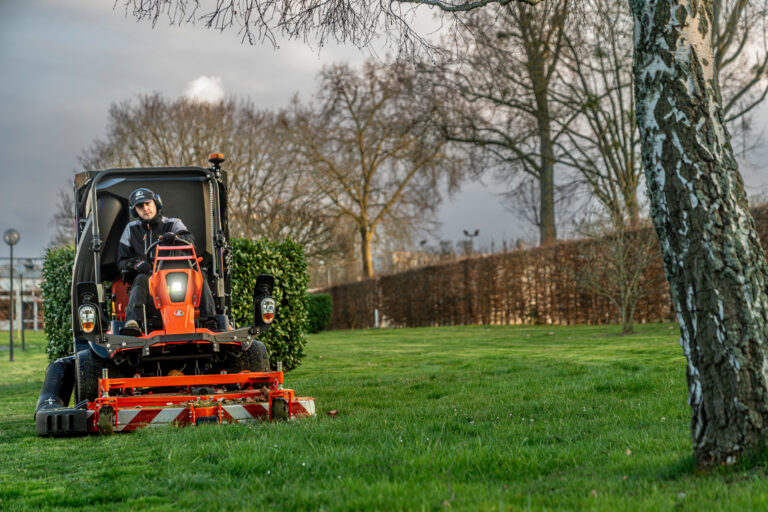

With the deck positioned at the front of the mower, operators can see exactly where they are cutting, making it much easier to navigate around obstacles like trees, flowerbeds, or fences.
Ergonomic Controls & Comfort
Designed with comfort in mind, the F Series features suspension seating, intuitive controls, and a smooth ride. Spend more time mowing and less time adjusting your equipment. The ergonomic design ensures you stay comfortable during even the longest mowing sessions.
Superior Cutting Performance
Backed up by the KUBOTA engine and advanced cutting technology, our mower decks ensure a clean, even cut every time. Whether it's thick grass, uneven terrain, or wet conditions, it handles all with ease.

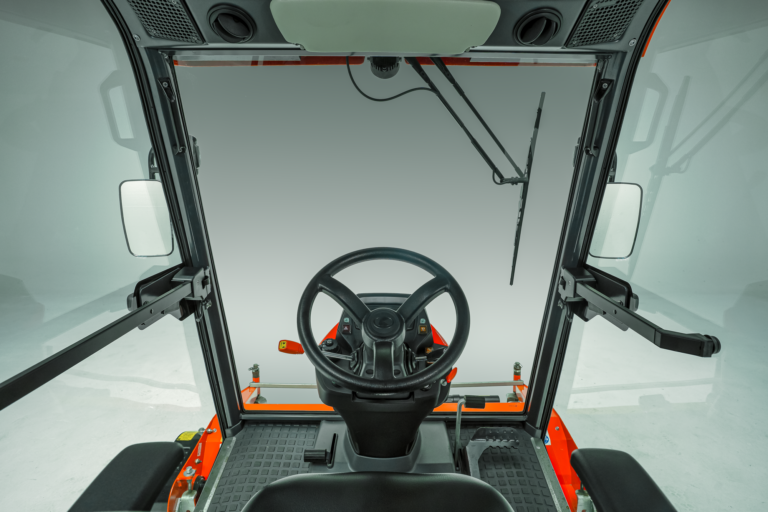

Comfort of the highest order
The fully integrated cab offers a wide range of innovative features which creates a premium workspace. The generous interior is enhanced by fullglass door panels for complete all-round visibility and the noise level remains at a minimum thanks to thick padded floor matting and silent-bloc mounts.

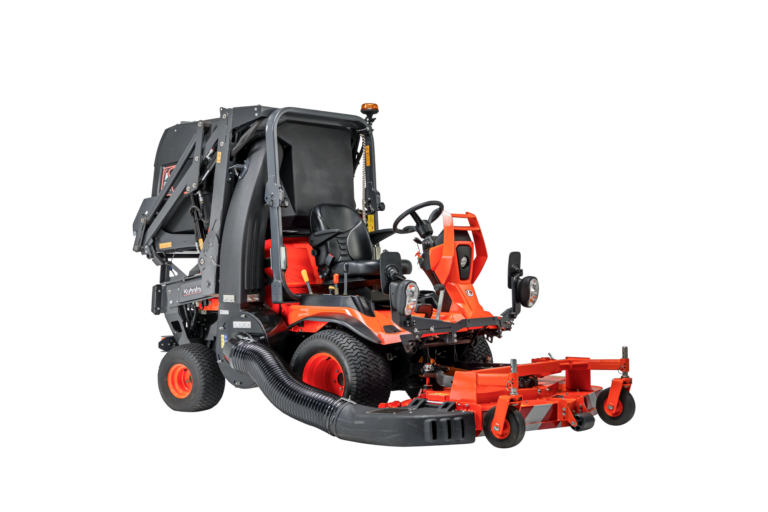

Large capacity collector
A 700-litre capacity grass collector allows large areas to be worked before emptying. Lever operated, the high tip collector tank can be unloaded quickly and efficiently.
Model
Engine gross power SAE
Cutting width
Discharge direction
F-251
25 Hp
1,52 m (60inch) / 1,83 m (72 inch)
Side or Rear discharge
F-251 w/ collector
25 Hp
1,52 m (60inch) / 1,83 m (72 inch)
Side or Rear discharge
F-391
37 Hp
1,52 m (60inch) / 1,83 m (72 inch)
Side or Rear discharge
F-391 w/ collector
37 Hp
1,52 m (60inch) / 1,83 m (72 inch)
Side or Rear discharge
F-391 w/ cabin
37 Hp
1,52 m (60inch) / 1,83 m (72 inch)
Side or Rear discharge
- Engine
- Transmission
- Comfort
- Versatility
- Mower deck
- Accessories and options
Engine
- Kubota diesel engines deliver 25 hp or 37 hp.
- Environmentally friendly (Stage V EU emissions directive).
- Fully opening engine cowling.
- Easier maintenance checks.
Transmission
- Dual-range HST hydrostatic transmission with single operating pedal.
- Infinitely variable speed up to 20kph.
- 2,545 rpm PTO shaft.
- Choice of 2W or 4W drive.
- 4WD with Auto-Assist 4WD (Four-wheel drive engages automatically when conditions require).
Comfort
- LED headlights provide excellent visibility in the dark.
- Very easy to read instruments.
- Adjustable steering wheel.
- Tie down points at the front and rear of the machine for safe transportation on a trailer.
Versatility
- 260 kg lift capacity on the lower links.
- 2,545 rpm PTO shaft.
- Wide range of equipment options (mower, flail mower, sweeper, etc.).

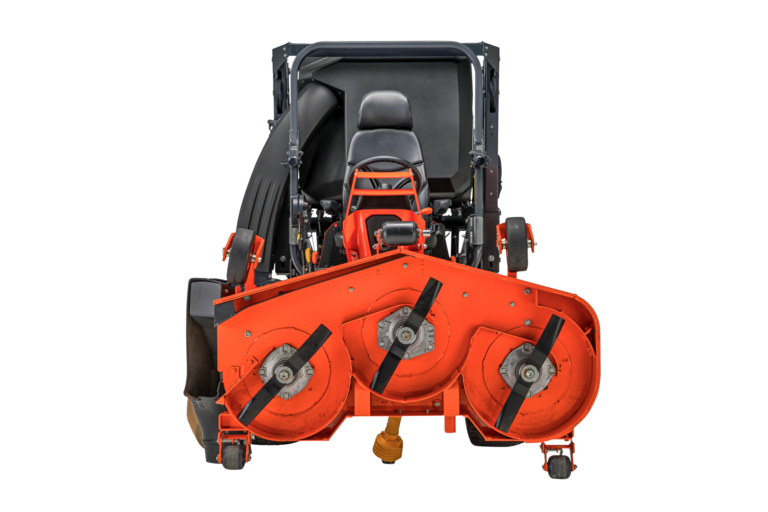

Mower deck
- New mower decks (60 or 72 inch) with increased cutting capacity (choice of side or rear discharge).
- Optional mulching kit.
- Mowing deck swivels 90° to facilitate blade changes and cleaning.
- Puncture proof support wheels.
Accessories and options
- F-391 model available with cabin or collector.
- F-621 available with collector.
- The 203cm cabin is equipped with A/C and noise reduction materials.
